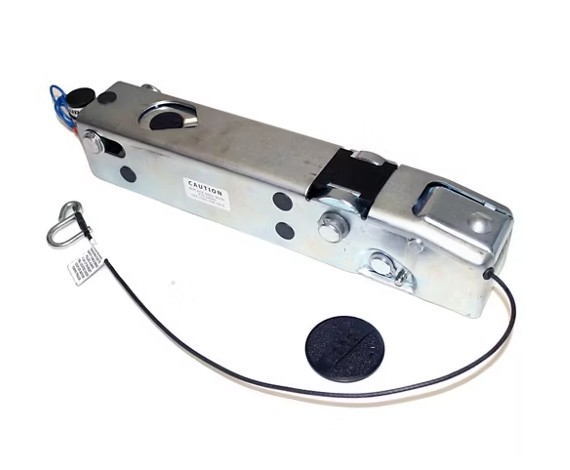

Dexter® 2″ Ball 7.5K Surge Brake Actuator Coupler Model DX7.5L, Inner Member Slide Top Mount for Disc Brake Systems, Zinc, Over-Center Low-Profile Latch

UFP A-60 Replacement Inner Member For Disc Brakes

The linear stroke design provides uniform brake line pressure throughout the stroke for improved stopping and smooth operation with less chucking.

UFP actuators with capacities 8,400lbs and under incorporate the same internal components (master cylinder, shock absorber, roller pins, etc.) creating fewer replacement kits required to service UFP actuator models.

All UFP housings are manufactured with the same dimensions allowing interchangeable inner members with capacities 8,400lbs and under.

Master cylinders are constructed of aluminum rather than plastic or steel for increased strength and corrosion resistance.

The sealed master cylinder’s reservoir diaphragm barrier inhibits moisture from contaminating brake fluid and corroding brake components.  Brake fluid cannot escape from the reservoir and damage the trailers paint.  The reservoir cap is recessed to prevent damage.  A dip stick is also included for easy fluid level checks.

The unique over-center latch mechanism will only engage when the actuator is fully seated on the ball.



The housing(outer member) that mounts to the frame is interchangeable with Titan model 60, Titan model 66, and select Demco model actuators.



• 7,500lb capacity

• For use with disc brakes

• Fits a 2″ ball

• Fits all UFP actuators with a capacity of 8,400lbs or less

• Includes the inner member with all interior components

• Includes electric reverse solenoid

• Includes the 2 set pins to lock the inner member into the housing

• Quick easy installation

• No need to remove the housing from the frame
