Details
| Axle Suspension Type | Leaf Spring Suspension |
|---|---|
| Leaf Spring Type | Double-Eye |
| Axle Spacing | 33 1/2″ |
| Number of Axles | Triple |
| Hardware Manufacturing Process | E-Z Flex |
| Leaf Spring Width | 1 3/4″ |
| Suspension Capacity | Up to 8K |

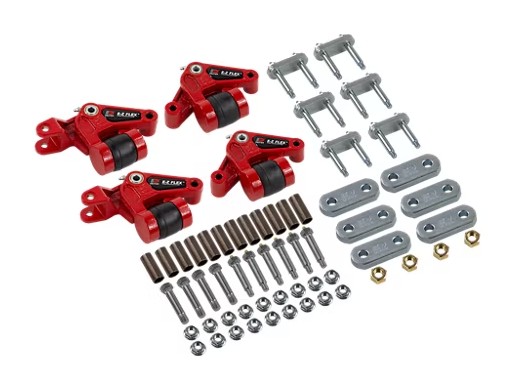

| Dx Part No | Quantity | Description | |
| 007-187-01 | 6 | Bolt, Shoulder (Zinc) | |
| 014-077-00 | 12 | Bushing | |
| 018-026-05 | 6 | Shackle Link Assembly (Zinc) | |
| 006-007-01 | 4 | Nut, Hex Locking | |
| 006-092-01 | 18 | Nut, Flange | |
| 007-003-01 | 4 | Bolt, Press-In | |
| 013-144-06 | 2 | Equalizer Assembly (Red) | |
| 018-024-01 | 6 | Shackle Link | |
| 088-008-00 | 4 | Grease Packet | |
| 059-A45-00 | 1 | E-Z Flex Instruction Sheet | |
| 013-146-06 | 2 | Equalizer Assembly (Red) |
