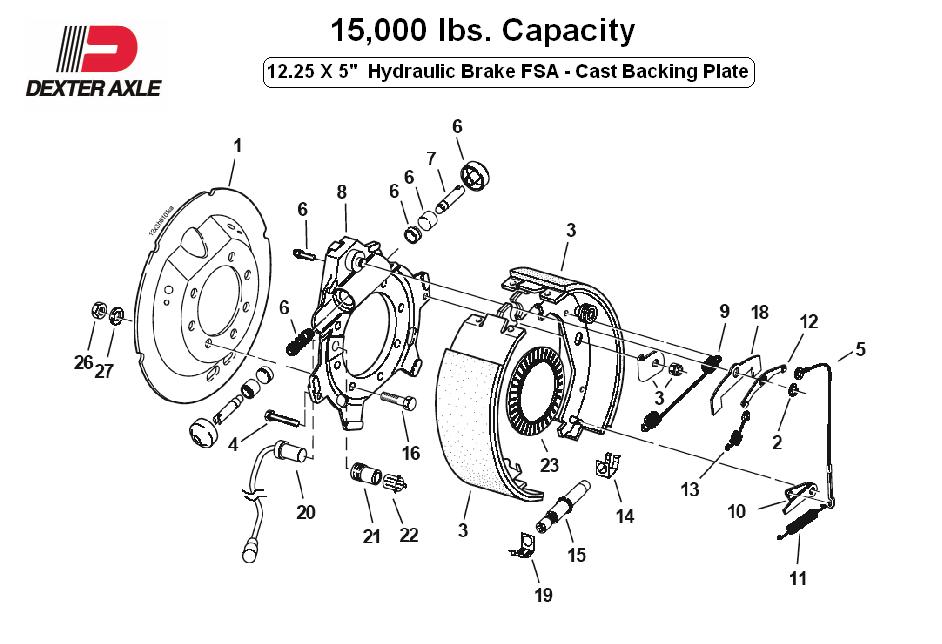

Click here To Enlarge DWG
| Part # |
Description |
Item # |
Dexter # |
| 27-454 |
LH Complete Brake Assembly |
Assembly |
23-406 |
| 27-455 |
RH Complete Brake Assembly |
Assembly |
23-407 |
| 27-480-M |
Dust Cover |
1 |
036-115-23 |
| 27-534-1 |
Retainer |
2 |
069-053-00 |
| 27-412 |
LH Shoe & Lining Kit – For Cast Assembly |
3 |
K71-169-00 |
| 27-413 |
RH Shoe & Lining Kit – For Cast Assembly |
3 |
K71-170-00 |
| 27-529-2 |
Shoe Hold-Down Screw |
4 |
007-113-00 |
| 27-523-3 |
Adjuster Cable |
5 |
071-462-00 |
| |
|
|
|
| 27-488 |
Wheel Cylinder Kit |
6 |
K71-082-00 |
| |
Kit contains: |
|
|
| |
Cylinder Spring |
6 |
046-129-00 |
| |
Cylinder Boot |
6 |
054-032-00 |
| |
Cylinder Piston |
6 |
054-030-00 |
| |
Cylinder Cup |
6 |
054-087-00 |
| 27-489-2 |
Bleeder Screw |
6 |
054-035-00 |
| |
|
|
|
| 27-489 |
Cylinder Push Rod |
7 |
054-033-00 |
| |
Spider Assembly |
8 |
036-063-04 |
| 27-515 |
Retractor Spring |
9 |
046-087-00 |
| 27-524-1 |
LH Adjuster Lever |
10 |
071-464-00 |
| 27-525-1 |
RH Adjuster Lever |
10 |
071-463-00 |
| 27-526-1 |
LH Adjuster Lever Spring |
11 |
046-135-00 |
| 27-527-1 |
RH Adjuster Lever Spring |
11 |
046-134-00 |
| 27-489-1 |
Cable Attachment Bracket FSA |
12 |
071-456-00 |
| 27-489-5 |
Extension Spring |
13 |
046-131-01 |
| 27-522-2 |
Adjuster Clip (barrel end) |
14 |
046-133-00 |
| 27-520-1 |
LH Adjuster Assembly |
15 |
048-019-00 |
| 27-521-1 |
RH Adjuster Assembly |
15 |
048-020-00 |
| 27-062-7 |
Brake Mounting Bolt |
16 |
007-116-00 |
| 27-489-1 |
Piston Stop |
18 |
034-062-00 |
| 27-522-1 |
Adjuster Clip (thread end) |
19 |
046-132-00 |
| 22-491 |
ABS Sensor (straight) |
20 |
097-004-00 |
| 22-495 |
ABS Sensor Mounting Block |
21 |
024-204-00 |
| 22-492 |
ABS Sensor Retaining Clip |
22 |
097-002-00 |
| 22-499 |
ABS Tone Ring in Drum |
23 |
024-203-00 |
| 27-062-1 |
Brake Mounting Nut |
26 |
26 006-017-00 |
| 27-066 |
Lockwasher |
27 |
005-008-00 |
