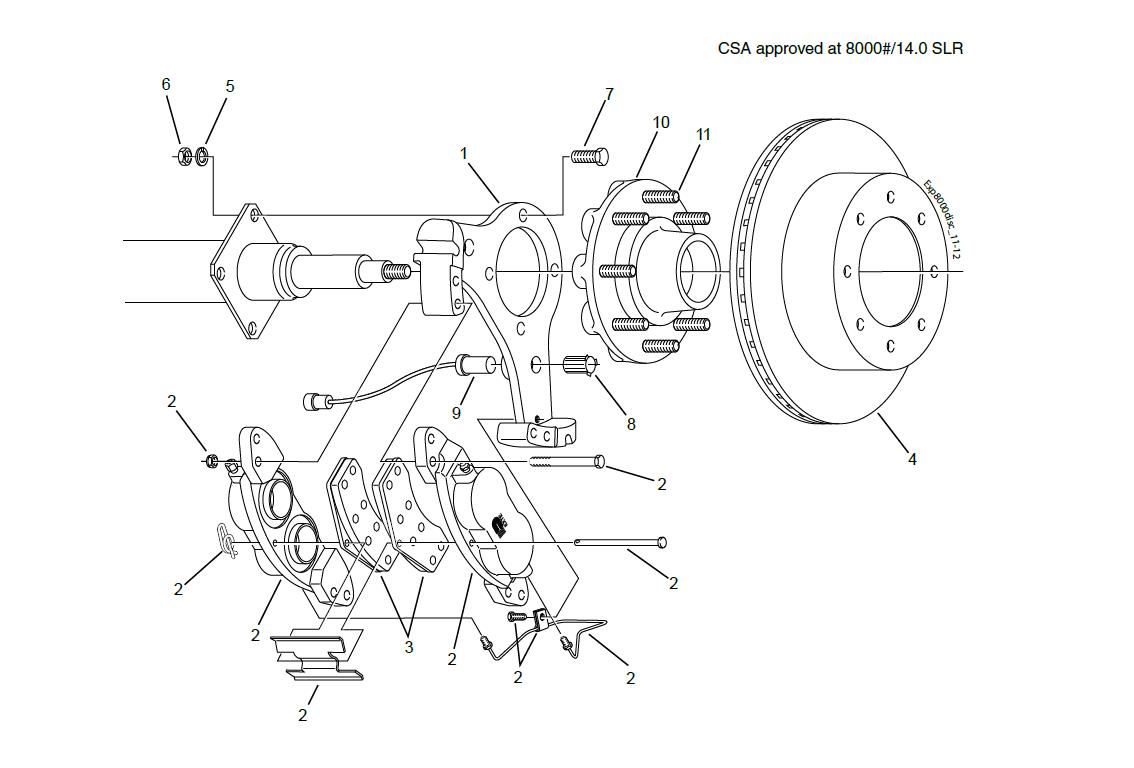

8K DISC BRAKE PARTS
CALIPER 89-3
| 8K DISC BRAKE PARTS | |||
| DEXTER # | Description | ITEM | |
| 090-003-01 | Anchor Yoke | 1 | 27-903-1 |
| K71-630-00 | Caliper Assembly Kit (LH or RH) | 2 | 27-575-8 |
| Kit contains: | |||
| 089-003-02 | Assembled Caliper Half | 2 | |
| 054-092-00 | Bleeder Screw | 2 | 27-54-92 |
| 054-094-00 | Adapter Fitting | 2 | 07-27-006 |
| 007-254-00 | Caliper Mounting Bolt | 2 | 27-591 |
| 007-255-00 | Pad Keeper Bolt | 2 | 27-571-6 |
| 006-086-00 | Caliper Mounting Lock Nut | 2 | 27-530-1 |
| 006-192-00 | Pad Keeper Lock Nut | 2 | 27-571-7 |
| 071-518-00 | Cross Over Hydraulic Line (New Style) | 2 | 05-27-041 |
| K71-629-00 | Brake Pad Kit (axle set) | 3 | 27-414-8 |
| K71-631-00 | Rotor Kit | 4 | 27-570-8 |
| 005-058-00 | 1/2” Lock Washer | 5 | 27-062-9 |
| 006-129-00 | 1/2” Hex Nut | 6 | 27-062-6 |
| 007-097-00 | 1/2” Brake Mounting Bolt | 7 | 27-062-5 |
| 097-002-00 | ABS Sensor Retaining Clip 8 097-002-00 | 8 | 22-492 |
| 097-004-00 | ABS Sensor (straight) | 9 | 22-491 |
