Electric Brake – 7,000 LBS
Electric Brake – 7,000 LBS
Select Part Number to View & Order Online
|

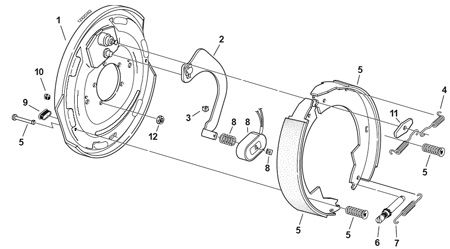

Part #
|
Description | Item # | Dexter # | |
| 27-450 | LH Complete Brake Assembly | 023-180-00 | ||
| 27-451 | RH Complete Brake Assembly | 023-181-00 | ||
| – | Backing Plate Assembly | 1 | 036-089-10 | |
| 27-492-1 | LH Actuating Lever Arm | 2 | 047-107-00 | |
| 27-493-1 | RH Actuating Lever Arm | 2 | 047-108-00 | |
| 27-509-1 | Wire Clip | 3 | 027-005-00 | |
| 27-500 | Retractor Spring | 4 | 046-009-00 | |
| 27-416 | Shoe & Lining Kit | 5 | K71-127-00 (Equiv) | |
| – | Kit contains: | |||
| – | Primary Shoe & Lining | 5 | 040-215-00 | |
| – | Secondary Shoe & Lining | 5 | 040-216-00 | |
| 27-513-1 | Shoe Hold Down Pin #2 | 5 | 049-011-00 | |
| 27-514 | Shoe Hold Down Spring & Cup | 5 | 046-077-00 | |
|
Adjuster Assembly | 6 | 043-004-00 | |
| 27-511 | Adjuster Spring | 7 | 046-018-00 | |
| 27-425 | Magnet Kit | 8 | K71-125-00 | |
| – | Kit contains: | |||
| – | Magnet (black wire) | 8 | 042-101-01 | |
| 27-499 | Magnet Clip | 8 | 027-009-00 | |
| 27-499-1 | Magnet Spring | 8 | 046-080-00 | |
| 27-512 | Adjuster Slot Plug | 9 | 046-007-00 | |
| 27-509 | Wire Grommet | 10 | 046-016-00 | |
| 27-504 | Anchor Post Washer | 11 | 005-067-00 | |
| – | Nut Washer Assembly | 12 | 006-193-00 | |
| (not included with complete brake assembly) | ||||
