HUBS – 3,500 LBS Capacity
Select Part Number to View & Order Online
Hubs – 3,500 LBS Capacity

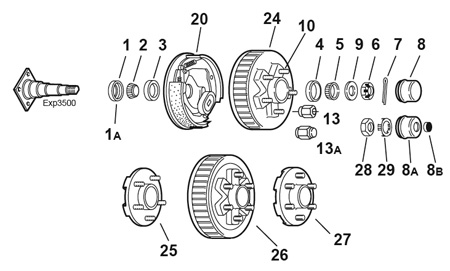

HUB – 3,500 LBS Capacity
| Part # | Description | Item # | Dexter # | Ref # |
| 27-351 | Grease Seal | 1 | 010-004-00 | 273851 |
| 27-351-1 | Grease Seal for E-Z Lube | 1a | 010-019-00 | 273855 |
| 27-324 | L68149 Inner Bearing | 2 | 031-033-02 | 273715 |
| 27-325 | L68111 Inner Race | 3 | 031-033-01 | 273720 |
| 27-321 | L44610 Outer Race | 4 | 031-031-01 | 273700 |
| 27-320 | L44649 Outer Bearing | 5 | 031-031-02 | 273695 |
| 27-084 | Bearing Kit – Non EZ | |||
| 27-085 | Bearing Kit – EZ | |||
| 27-056 | Spindle Nut | 6 | 006-176-00 | 270990 |
| 27-027 | Cotter Pin | 7 | 019-002-00 | 270540 |
| 27-370 | Grease Cap | 8 | 021-003-00 | 273985 |
| 27-370-2 | Grease Cap for E-Z Lube | 8a | 021-041-01 | 273990 |
| 27-379 | Rubber Plug for E-Z Lube | 8b | 085-001-00 | 274115 |
| 27-058 | Spindle Washer | 9 | 005-023-00 | 271040 |
| 27-383 | 1/2”-20 Pressed Wheel Stud | 10 | 007-122-00 | 274135 |
| 27-008 | 1/2”-20 Cone Nut (60 degree) | 13 | 006-080-00 | 270110 |
| 27-008-1 | 1/2”-20 Stainless Steel Capped Wheel Nut | 13a | 006-098-00 | 270120 |
| 27-057-3 | Special Jam Nut (after 2002) | 28 | 006-191-00 | 271030 |
| 27-061 | Spindle Nut Retainer (after 2002) | 29 | 006-190-00 | 271120 |
|
Brake Assembly 3.5K ELECTRIC ( See & Order Below 27-440 & 27-441) |
20 | |||
| 27-290-B | Hub – 5-4.5” Brake (1/2” stud) | 24 | 008-247-05 | 273315 |
| 27-294-B | Hub – 5-5.0” Brake (1/2” stud) | 24 | 008-249-07 | 273360 |
| 27-291-B | Hub – 5-5.5” Brake (1/2” stud) | 24 | 008-249-05 | 273330 |
| 27-295-B | Hub – 5-4.75” Brake (1/2” stud) | 24 | 008-247-12 | 273370 |
| 27-292-B | Hub – 6-5.5” Brake (1/2” stud) | 26 | 008-250-05 | 273340 |
| 27-290-I | Hub – 5-4.5” Idler (1/2” stud) | 25 | 008-248-05 | 273320 |
| 27-295-I | Hub – 5-4.75” Idler (1/2” stud) | 25 | 008-248-10 | 273375 |
| – | Hub – 5-4.5” Idler (1/2” stud for disc brake) | 25 | 008-248-22 | n/a |
| 27-294-I | Hub – 5-5.0” Idler (1/2” stud) | 25 | 008-256-07 | 273365 |
| 27-291-I | Hub – 5-5.5” Idler (1/2” stud) | 25 | 008-256-05 | 273335 |
| 27-292-I | Hub – 6-5.5” Idler (1/2” stud) | 27 | 008-251-05 | 273345 |
| 27-383-Z | 1/2”-20×2.09” Pressed Wheel Stud for Disc Brake | 007-150-00 | 274150 |

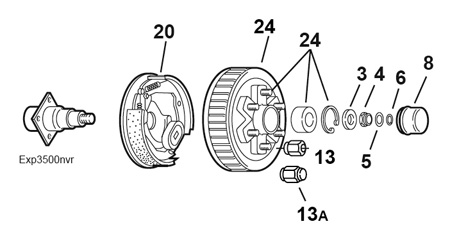

Never Lube
| Part # | Description | Item # | Dexter # | Ref # |
| 27-060-1 | Spindle Washer | 3 | 005-150-00 | 271090 |
| 27-057-2 | Spindle Nut | 4 | 006-183-00 | 271020 |
| 27-365-1 | Washer, Torque Label | 5 | 092-002-00 | 273945 |
| 27-365 | Snap Ring | 6 | 069-096-00 | 273940 |
| 27-370-4 | Hub Cap | 8 | 021-084-00 | 274000 |
| – | Brake Assembly (See & Order Below — 27-440 & 27-441) |
20 | ||
| – | Hub & Drum (6-5.5”) Kit | 24 | 008-386-80 | |
| – | Kit contains: | |||
| – | 1/2”-20 Press-in Stud | 007-185-00 | ||
| – | 35 mm Cartridge Bearing | 24 | 031-072-03 | |
| – | Bearing Retainer | 24 | 069-094-00 | |
| 27-008 | 1/2”-20 Cone Nut (60 degree) | 13 | 006-080-00 | 270110 |
| 27-008-1 | 1/2”-20 Stainless Steel Capped Wheel Nut | 13a | 006-098-00 | 270120 |
Note : Nev-R-Lube has a 5-Year/1000,000 mile warranty
