Hubs – 7,000 LBS Capacity
Select Part Number to View & Order Online

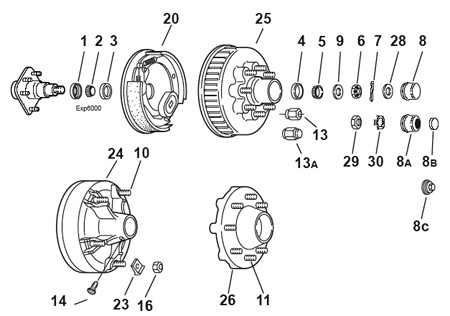

HUBS – 7,000 LBS Capacity
| Part # |
Description |
Item # |
Dexter # |
| 27-352 |
Grease Seal (2.125”) |
1 |
010-001-00 |
| 27-352-1 |
Grease Seal, E-Z Lube Seal (2.125”) |
1 |
010-010-00 |
| 27-361 |
Grease Seal (2.250”) |
1 |
010-054-00 |
| 27-352-2 |
E-Z Lube Seal (2.250”) |
1 |
010-036-00 |
| 27-326 |
25580 Inner Bearing |
2 |
031-030-02 |
| 27-327 |
25520 Inner Race |
3 |
031-030-01 |
| 27-331 |
14276 Outer Race – 865 Hub |
4 |
031-017-01 |
| 27-341 |
15245 Outer Race – UTG Hub |
4 |
031-029-01 |
| 27-340 |
15123 Outer Bearing – UTG Hub |
5 |
031-029-02 |
| 27-330 |
14125A Outer Bearing – 865 Hub |
5 |
031-017-02 |
| – |
Bearing Kit |
n/s |
n/a |
| 27-056 |
Spindle Nut |
6 |
006-176-00 |
| 27-027 |
Cotter Pin (not used on E-Z Lube) |
7 |
019-002-00 |
| 27-371 |
Grease Cap – UTG |
8 |
021-001-00 |
| 27-372 |
Grease Cap – 865 Hub |
8 |
021-039-00 |
| 27-371-2 |
Grease Cap E-Z Lube – UTG |
8a |
021-042-01 |
| 27-372-2 |
Grease Cap E-Z Lube – 865 Hub |
8a |
021-043-01 |
| 27-379 |
E-Z Lube Rubber Plug |
8b |
085-001-00 |
| 27-373 |
Oil Cap – 865 Hub |
8c |
021-035-00 |
| 27-373-1 |
Oil Cap – UTG Hub |
8c |
021-040-00 |
| 27-059 |
Spindle Washer |
9 |
005-057-00 |
| 27-384 |
9/16”-18 Stud – UTG |
10 |
025-011-00 |
| 27-386 |
9/16”-18 Press-in Stud |
ns |
007-132-00 |
| 27-387 |
5/8”-18 Press-in Stud |
ns |
007-232-00 |
| 27-383 |
1/2”-20 Press-in Stud |
11 |
007-122-00 |
| 27-008 |
1/2”-20 Cone Nut (60 degree) |
13 |
006-080-00 |
| 27-008-1 |
1/2”-20 Stainless Steel Capped Wheel Nut |
13a |
006-098-00 |
| 27-032 |
9/16”-18 Cone Nut (60 degree) |
ns |
006-053-00 |
| 27-032-2 |
5/8”-18 Cone Nut (90 degree) |
ns |
006-109-00 |
| 27-378 |
Oil Filler Plug |
14 |
046-052-00 |
| 27-377 |
Oil Cap Plug |
ns |
046-032-00 |
| – |
Brake Assembly |
20 |
|
| 27-026 |
9/16”-18 Nut for Rim Clamp |
16 |
006-005-00 |
| 27-024-1 |
Rim Clamp |
23 |
015-002-00 |
(continued from previous page)
| Part # |
Description |
Item # |
Dexter # |
Ref # |
| 27-303-B |
Hub – Demountable – Brake (grease, 9/16” stud) |
24 |
008-174-05 |
273435 |
| 27-303-B/OIL |
Hub – Demountable – Brake (oil, 9/16” stud) |
24 |
008-174-06 |
273440 |
| 27-301-B |
Hub – 8-6.5” Brake (grease, 1/2” stud) |
25 |
008-219-04 |
273410 |
| 27-301-1-B |
Hub – 8-6.5” Brake (grease, 9/16” stud) |
25 |
008-219-13 |
273390 |
| 27-301-2-B |
Hub – 8-6.5” Brake (grease, 5/8” stud) |
25 |
008-219-18 |
273400 |
| 27-301-B/OIL |
Hub – 8-6.5” Brake (oil, 1/2” stud) |
25 |
008-219-09 |
273415 |
| – |
Hub – 8-6.5” Brake (oil, 9/16” stud) |
25 |
008-219-20 |
n/a |
| – |
Hub – 8-6.5” Brake (oil, 5/8” stud) |
25 |
008-219-26 |
n/a |
| 27-301-I |
Hub – 8-6.5” Idler (grease, 1/2” stud) |
26 |
008-231-09 |
273420 |
| – |
Hub – 8-6.5” Idler (grease, 9/16” stud) |
26 |
008-231-18 |
n/a |
| – |
Hub – 8-6.5” Idler (grease, 5/8” stud) |
26 |
008-231-20 |
n/a |
| 27-301-I/OIL |
Hub – 8-6.5” Idler (oil, 1/2” stud) |
26 |
008-231-16 |
273425 |
| 27-375 |
O-Ring – 865 Hub |
28 |
010-045-00 |
274085 |
| 27-057-3 |
Special Jam Nut (after 2002) |
29 |
006-191-00 |
271030 |
| 27-061 |
Spindle Nut Retainer (after 2002) |
30 |
006-190-00 |
271120 |
|

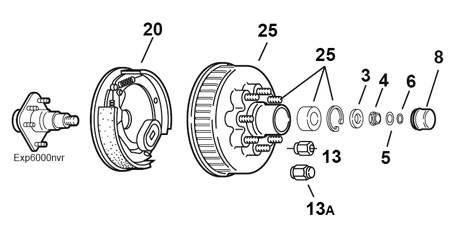

Never Lube Hub
| Part # |
Description |
Item # |
Dexter # |
Ref # |
| 27-060-2 |
Spindle Washer, 42 mm |
ns |
005-147-01 |
271100 |
| 27-060-3 |
Spindle Washer, 50 mm |
3 |
005-149-00 |
271110 |
| 27-057-2 |
Spindle Nut |
4 |
006-183-00 |
271020 |
| 27-365-1 |
Washer, Torque Label |
5 |
092-002-00 |
273945 |
| 27-365 |
Snap Ring |
6 |
069-096-00 |
273940 |
| 27-371-4 |
Hub Cap, 42 mm |
ns |
021-085-00 |
274020 |
| 27-372-4 |
Hub Cap, 50 mm |
8 |
021-086-00 |
274040 |
| – |
Brake Assembly |
20 |
|
n/a |
| – |
Hub & Drum 6-5.5” Kit |
25 |
008-388-80 |
n/a |
| – |
Kit includes: |
| 27-383 |
1/2”-20 Press-in Studs |
25 |
007-122-00 |
274135 |
| 27-366-1 |
42 mm Bearing Cartridge |
25 |
031-073-03 |
273950 |
| 27-367-1 |
Bearing Retainer |
25 |
069-095-00 |
273960 |
| 27-301-3-B |
Hub & Drum 8-6.5” (1/2” stud) Kit |
25 |
008-385-82 |
273405 |
| – |
Kit includes: |
| 27-383 |
1/2”-20 Press-in Studs |
25 |
007-122-00 |
274135 |
| 27-366-2 |
50 mm Bearing Cartridge |
25 |
031-071-03 |
273955 |
| 27-367-2 |
Bearing Retainer |
25 |
069-093-00 |
273965 |
| – |
Hub & Drum 8-6.5” (9/16” stud) Kit |
25 |
008-385-81 |
n/a |
| – |
Kit includes: |
| 27-385-1 |
9/16”-18 Press-in Studs |
25 |
007-223-00 |
274165 |
| 27-366-2 |
50 mm Bearing Cartridge |
25 |
031-071-03 |
273955 |
| 27-367-2 |
Bearing Retainer |
25 |
069-093-00 |
273965 |
| – |
Hub & Drum 8-6.5” (5/8” stud) Kit |
25 |
008-385-80 |
n/a |
| – |
Kit includes: |
| 27-388-1 |
5/8”-18 Press-in Studs |
25 |
007-224-00 |
274195 |
| 27-366-2 |
50 mm Bearing Cartridge |
25 |
031-071-03 |
273955 |
| 27-367-2 |
Bearing Retainer |
25 |
069-093-00 |
273965 |
| 27-008 |
1/2”-20 Cone Nut (60 degreee) |
13 |
006-080-00 |
270110 |
| 27-008-1 |
1/2”-20 Stainless Steel Capped Wheel Nut |
13a |
006-098-00 |
270120 |
| 27-032 |
9/16”-18 Cone Nut (60 degree) |
ns |
006-053-00 |
270600 |
| 27-032-2 |
5/8”-18 Cone Nut (90 degree) |
ns |
006-109-00 |
270620 |
Note : Nev-R-Lube has a 5-Year/1000,000 mile warranty |
