Spring Hanger Kits – Eye to Eye-2,000 – 7,000 Lbs.
Single Axle Hanger Kit 2,000 – 7,000 lbs. Axles
Single Axle Hanger Kit 2,000 – 7,000 lbs. Axles
| Part # | Description | Item # | Dexter # | # per Kit |
| 27-100 | Complete Hanger Kit | n/a | n/a | n/a |
| 27-005 | Shackle Link (3.125” – center of holes) | 2 | 18-12 | 4 |
| 27-001 | Front Hanger (2” – top to center of hole) | 3 | 29-8 | 2 |
| 27-003 | Shackle Bolt (9/16” x 3”) | 5 | 7-3 | 6 |
| 27-004 | Shackle Nut (9/16” locking) | 6 | 6-7 | 6 |
| 27-002 | Rear Hanger w/ 1” Bushing | 7 | 30-20 | 2 |
| Part # | Description | Item # | # per Kit |
| 27-100-S | Complete Hanger Kit (Short Front hanger) | n/a | n/a |
| 27-005 | Shackle Link (3.125” – center of holes) | 2 | 4 |
| 27-001-1 | Front Hanger (1.44” – top to center of hole) | 3 | 2 |
| 27-003 | Shackle Bolt (9/16” x 3”) | 5 | 6 |
| 27-004 | Shackle Nut (9/16” locking) | 6 | 6 |
| 27-002-2 | Rear Hanger (1 1/2” – top to center of hole) | 7 | 2 |

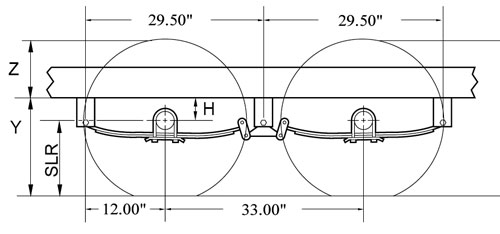

Tandem Axle Hanger Kit 2,000 – 7,000 lbs. Axles
Tandem Axle Hanger Kit 2,000 – 7,000 lbs. Axles
| Part# | Description | Item # | # per Kit |
| 27-108 | Complete Hanger Kit | n/a | n/a |
| 27-010 | Equalizer (9/16″ holes) | 1 | 2 |
| 27-005 | Shackle Link (3.125″ – center of holes) | 2 | 8 |
| 27-001 | End Hanger (2″ – top to center of hole) | 3 | 4 |
| 27-009 | Center Hanger (3.25″ – top to center of hole) | 4 | 2 |
| 27-003 | Shackle Bolt (9/16″ x 3″) | 5 | 14 |
| 27-004 | Shackle Nut (9/16″ locking) | 6 | 14 |
Tandem Axle Hanger Kit 2,000 – 7,000 lbs. Axles
| Part # | Description | Item # | # Per Kit |
| 27-109 | Complete Hanger Kit (all long hangers) | n/a | n/a |
| 27-010 | Equalizer (9/16″ holes) | 1 | 2 |
| 27-005 | Shackle Link (3.125″ – center of holes) | 2 | 8 |
| 27-009 | End Hanger (3.25″ – top to center of hole) | 3 | 4 |
| 27-009 | Center Hanger (3.25″ – top to center of hole) | 4 | 2 |
| 27-003 | Shackle Bolt (9/16″ x 3″) | 5 | 14 |
| 27-004 | Shackle Nut (9/16″ locking) | 6 | 14 |

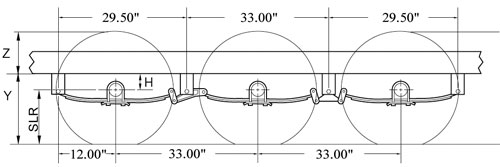

Triple Axle Hanger Kit 2,000 – 7,000 lbs. Axles
Triple Axle Hanger Kit 2,000 – 7,000 lbs. Axles
Triple Axle Hanger Kit 2,000 – 7,000 lbs. Axles
| Part # | Description | Item # | # Per Kit |
| 27-182 | Complete Hanger Kit | n/a | n/a |
| 27-010-1 | Front Equalizer (9/16” holes) | 1a | 2 |
| 27-010-2 | Rear Equalizer (9/16” holes) | 1 | 2 |
| 27-006 | Shackle Link (2.25” – center of holes) | 2 | 12 |
| 27-001 | End Hanger (2” – top to center of hole) | 3 | 4 |
| 27-009 | Center Hanger (3.25” – top to center of hole) | 4 | 4 |
| 27-003 | Shackle Bolt (9/16” x 3”) | 5 | 24 |
| 27-004 | Shackle Nut (9/16” locking) | 6 | 24 |
